Welcome to Jinan Lift Lifting Machinery Co.,Ltd

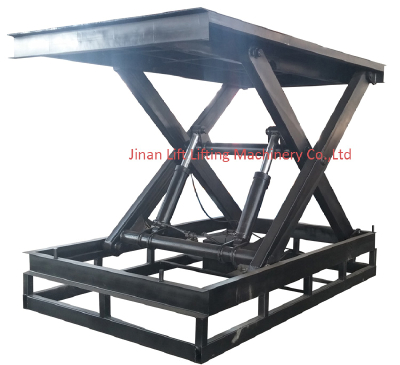

Hydraulic fixed scissor lift platform
Product Description
The hydraulic fixed scissor lift platform can be installed on ground to load cargo and then lifts till a certain height for unloading the cargo. It can be also installed in a lift pit. Then platform table is at the same level with the ground which is convenient to load the cargo onto it. In this way it also can be called freight elevator.
1) Platform table: anti-slip checkered steel plate
2) Scissor structure: Manganese steel rectangular tube
3) Control equipment : Delixi, Siemens or Schneider brand.
4) Pump station: Italy Hydrappp or Sino-italian brand.
5) Hydro cylinder:high precision wear-resisting hydraulic cylinder with locking device for fall protection.
6) Obturating ring: Brand German Seal (made in German) or Japan VLQU Seal
Control device:
1)Electrical up-down control device, or manual control when the electricity Is not available.We can also install the remote control device according to your requirement.
2)The remote control and multi-control points at the different floors could be realized at each control point. Lift up, Stop and Lower down can be realized at each control point.The lift platform could stop at the accurate loaction point
Model
| Table size | Capacity | Net lifting height | Min height | Total dimension |
SJG1-1.5 | 1200*1200mm | 1T | 1.5m | 560mm | 1200*1200*560mm |
SJG0.3-2.9 | 1400*750mm | 0.3T | 2.9m | 710mm | 1400*750*710mm |
SJG2-4 | 1600*1600mm | 2T | 4 m | 670mm | 1600*1600*670mm |
SJG0.3-5 | 1800*1200mm | 0.3T | 5m | 760mm | 1800*1200*760mm |
SJG1-1.5 | 2000*1500mm | 1T | 1.5m | 520mm | 2000*1500*520mm |
SJG1-4.2 | 2000*2000mm | 1T | 4.2m | 850mm | 2000*2000*850mm |
SJG3-3.5 | 2000*2000mm | 3T | 3.5m | 800mm | 2000*2000*800mm |
SJG2-5 | 2200*1500mm | 2T | 5m | 1050mm | 2200*1500*1050mm |
SJG1.5-8.5 | 2400*1600mm | 1.5T | 8.5m | 1450mm | 2400*1600*1450mm |
SJG2-3.5 | 2400*2000mm | 2T | 3.5m | 780mm | 2400*2000*780mm |
SJG3-7 | 2500*1400mm | 3T | 7m | 1250mm | 2500*1400*1250mm |
SJG5-5 | 2800*2000mm | 5T | 5m | 1020mm | 2800*2000*1020mm |
SJG2-4.5 | 2800*2600mm | 2T | 4.5m | 810mm | 2800*2600*810mm |
SJG2-2 | 3000*1300mm | 2T | 2m | 600mm | 3000*1300*600mm |
SJG1-5.8 | 3000*2400mm | 1T | 5.8m | 770mm | 3000*2400*770mm |
SJG3-7 | 3000*2500mm | 3T | 7m | 1080mm | 3000*2500*1080mm |
SJG4-1.65 | 3200*1850mm | 4T | 1.65m | 600mm | 3200*1850*600mm |
SJG28-1.9 | 4000*3500mm | 28T | 1.9m | 800mm | 4000*3500*800mm |
SJG2.5-6 | 4500*2200mm | 2.5T | 6m | 1000mm | 4500*2200*1000mm |
Hydraulic fixed scissor lift platform can be customized as per customer's demand. So, could you tell us the following questions for quotation:
1) Max travel height?
2) Rated capacity?
3) Platform size (L*W)
A. All the machines will be full tested before shipment
B.Technical supports and suggestions before you order a machine according to your work place.
C. Professional opertion instruction of the machine.
D. 12 months warranty period and we will provide the consumable parts at cost price after the warranty period.
E. 24-hour technical support by emails, calling or videos.
