Welcome to visit Jinan Lift Lifting Machinery Co.,Ltd

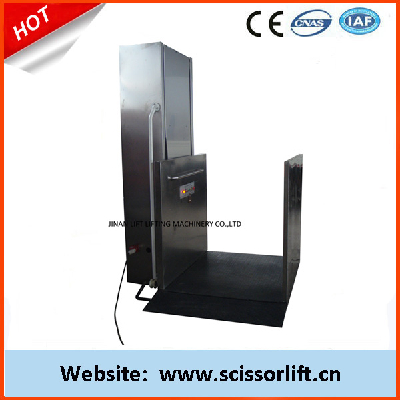

Hydraulic wheelchair lift
Features
1.Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2.Hydraulic wheelchair lift for disabled people can be directly installed into the ground without architectural supporting pits and easy to operate.
3.Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4.Emergency Descending: when there is no power or malfunctions, manually descend the device
5.Hydraulic wheelchair lift for disabled people is suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
Specifications:
Name | No. | Lift capacity (kg) | Materials | |
Wheel-chair vertical lift | SJC | 250 | Stainless steel | |
Platform size | 1300mm(L)* 1000mm(W) | |||
Dimension | 1300mm(L)*1400mm(W)*5700mm(H) | |||
Max Platform Height | 3000mm ( customized as per your demand) | |||
Min Platform height | 80mm | |||
Configuration | Open through or front and side entrances | |||
Speed | 70mm/s | |||
Load capacity | 250kg | |||
Control voltage | 24V/DC | |||
Power Output | 1.5kw | |||
Power Input | 220V/50HZ/25A (or customized for local power supply) | |||
Drive System | Hydraulic | |||
Control Mode | Inching Switch or Automatic | |||
Drive Control | Self-resetting system | |||
Overload | Protection Over current relay | |||
Material of Platform | Stainless steel | |||
Guard panel & drive cabinet (framework) | 304 stainless steel | |||
Ramp | automatical or fixed | |||
Column switch | Two column switch, one is on the ground floor, the other is on the first floor | |||
Operation Panel | Polished Stainless steel(up down and Emergency drop valve) | |||
Safety Wane Working Range | 75° | |||
Working Condition | Both indoors and outdoors | |||
Working temperature | From -10°~60°C | |||
Installation | Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) | |||
Control Device | Calling box (installed on the wall nearby) and remote controller(Extra optional) | |||
Emergency Stop | The lifting and lowering process can be stopped immediately by pressing the emergency button. | |||
Safety device | Safety Interlock | Lock the platform when it is out of control | ||
Safety Sensor | The operation must be stopped immediately the safety edge meets obstacles during operation. | |||
Emergency lowering | The platform can be lowered by opening hydraulic valve manually or rolling screw rod. | |||
Auto-flap | Turn up after lifting | |||
Pls tell us the following specifications, then we will send our exact quotation to you ASAP.
1)Max platform height?
Service & Guarantee
A. All the machines will be full tested before shipment
B.Technical supports and suggestions before you order a machine according to your work place.
C. Professional opertion instruction of the machine.
D. 12 months warranty period and we will provide the consumable parts at cost price after the warranty period.
E. 24-hour technical support by emails, calling or videos.
